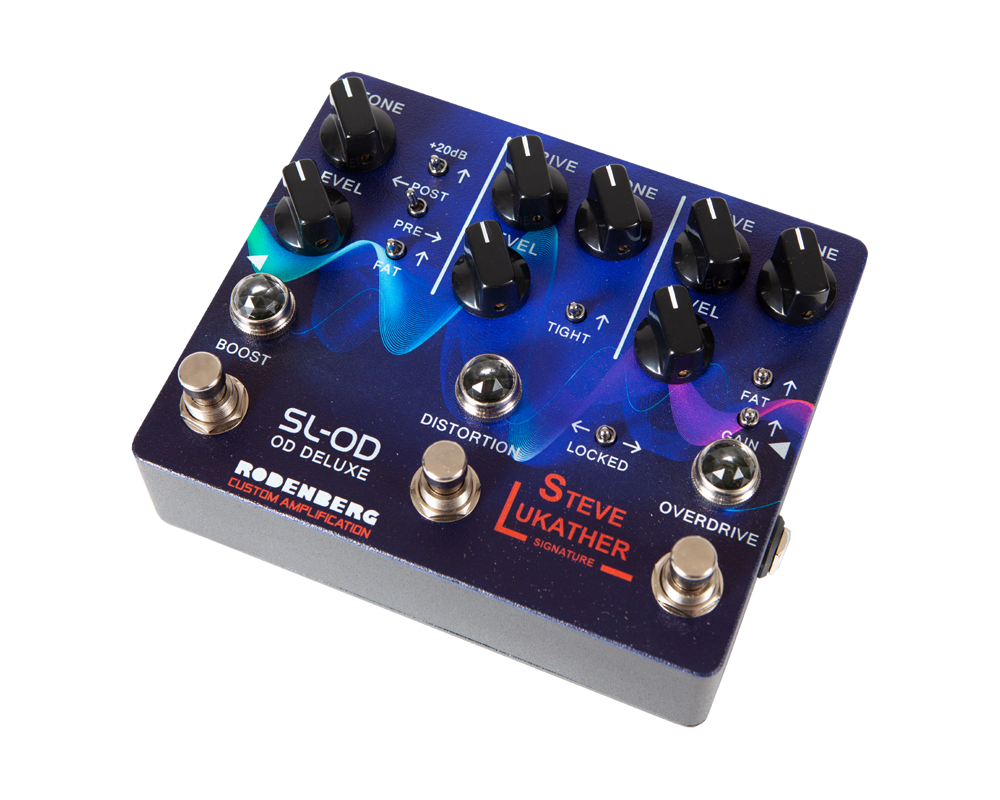

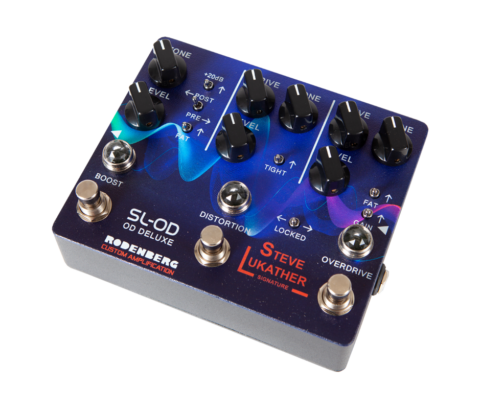

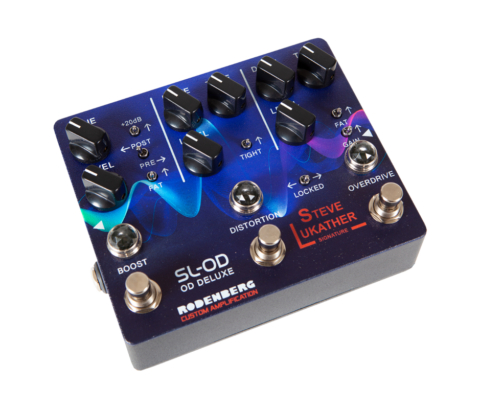

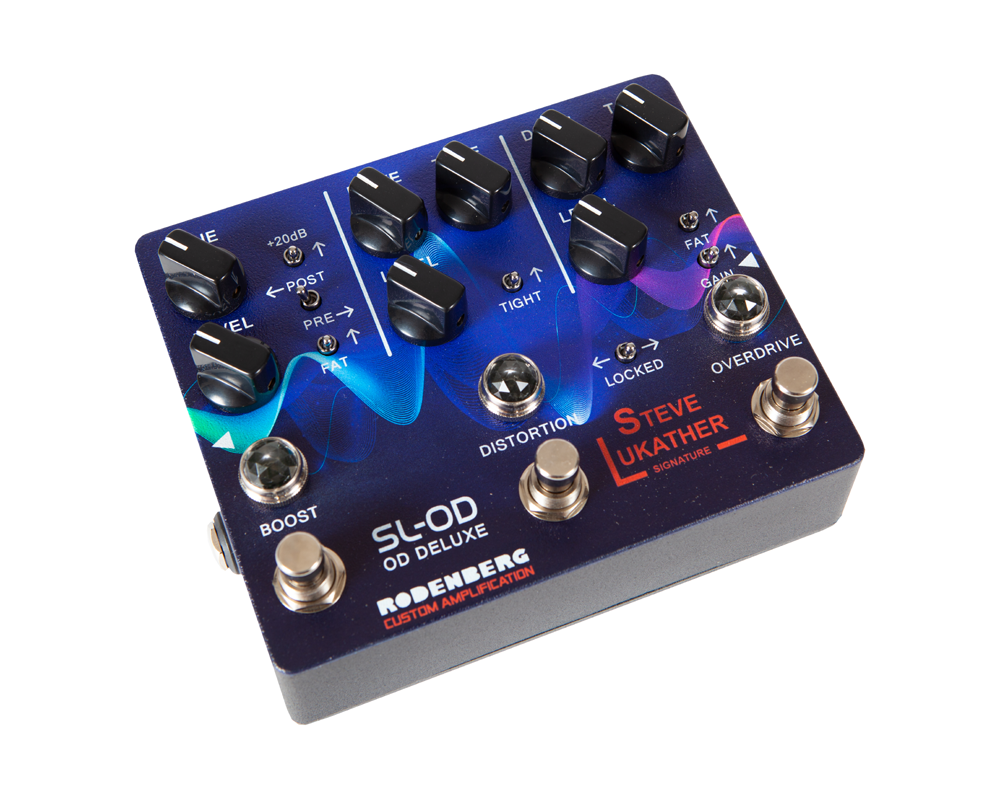

Official Steve Lukather Signature Overdrive pedal
Deluxe Version
Sound Design by Steve Lukather and Uli Rodenberg
- Three completely separate custom pedals in one box: Overdrive, Distortion, Boost (Clean boost)
- Overdrive with toggle switch for high gain
- Overdrive with toggle switch for FAT Boost
- Controls: Level, Tone, Drive
- Distortion with toggle switch for tight, slim, fast distortion sound
- Controls: Level, Tone, Drive
- Boost (Clean Boost) with 2 switches for FAT Boost and +20dB Level Boost
- Controls: Level, Tone
- Pre/Post toggle switch for changing the signal path
- Post: Signal chain: Guitar => Overdrive => Distortion => Boost (Clean Boost) => Amplifier
- Pre: Signal chain: Guitar => Boost (Clean Boost) => Overdrive => Distortion => Amplifier
- Locked switch: Locking the two overdrive/distortion
- 3x foot switches: Mechanical true bypass, (almost) no switching noises, new circuit design
- Jewel LED: Overdrive = Blue, Distortion = Red, Boost (Clean Boost) = Green
- Input and output: 6.3 mm jack
- Black powder-coated aluminum box
- Power supply via 9-18 V power supply unit (not included, no battery operation)
- Handcrafted in small quantities
- Handmade in Germany
- Three year warranty
Important:
The SL-OD Deluxe has internal 3 completely separate pedals in one box: Overdrive, Distortion, Boost.
All 3 pedals are connected in series as independent individual pedals and have their own level control..
If you play several sounds together, it is important to pay attention to the level positions, otherwise
some noise or microphony may occur:
Overdrive Level 1:1 = Control position approx. 12:00 o'clock
Distortion Level 1:1 = Control position approx. 9:00 o'clock
Boost Level (+20dB preset OFF) 1:1 = Control position approx. 10:00 o'clock
Difference between SL-OD and SL-OD Deluxe:
SL-OD signal chain: Guitar => Low Gain Overdrive (footswitch) => High Gain Overdrive (footswitch) => Boost (footswitch) => Amp
SL-OD Deluxe signal chain (Pre-Post switch left position):Guitar => Low Gain Overdrive (footswitch), switchable to High Gain Overdrive via toggle switch => Distortion (footswitch) => Boost (footswitch) => Amp
SL-OD Deluxe signal chain (Pre-Post switch right position):
Guitar => Boost (footswitch) => Low Gain Overdrive (footswitch), switchable to High Gain Overdrive via toggle switch => Distortion (footswitch) => Amp
Luke’s pedal board: TOTO – The Dogz of Oz Tour 2025
